沸石轉輪（Zeolite Rotor Concentrator）是一種廣泛應用于大風量、低濃度VOCs（揮發性有機物）廢氣處理的先進技術。它通過吸附-濃縮-脫附的循環過程，將低濃度廢氣濃縮為高濃度廢氣，從而降低后續處理設備的運行成本，并提高整體處理效率。

　　Zeolite Rotor Concentrator is an advanced technology widely used in the treatment of high air volume, low concentration VOCs (volatile organic compounds) exhaust gas. It concentrates low concentration exhaust gas into high concentration exhaust gas through a cycle of adsorption concentration desorption, thereby reducing the operating costs of subsequent treatment equipment and improving overall treatment efficiency.

　　一、沸石轉輪的工作原理

　　1、 Working principle of zeolite wheel

　　沸石轉輪的核心是利用疏水性沸石的高效吸附能力，結合旋轉式結構，實現連續吸附與脫附。其工作流程可分為三個階段：

　　The core of zeolite wheel is to utilize the efficient adsorption capacity of hydrophobic zeolite, combined with a rotating structure, to achieve continuous adsorption and desorption. Its workflow can be divided into three stages:

　　1. 吸附階段含VOCs的廢氣經過預處理（如過濾、降溫）后，進入轉輪的吸附區。 沸石材料（如分子篩）選擇性吸附廢氣中的VOCs，凈化后的氣體達標排放。

　　After pre-treatment (such as filtration and cooling) during the adsorption stage, the exhaust gas containing VOCs enters the adsorption zone of the impeller. Zeolite materials (such as molecular sieves) selectively adsorb VOCs in exhaust gas, and the purified gas meets emission standards.

　　2. 脫附階段吸附飽和的轉輪部分旋轉至脫附區*，通入180~220℃的熱空氣，使VOCs從沸石中脫附出來。 脫附后的廢氣濃度可提高5~25倍，大幅減少后續燃燒或催化氧化設備的處理負荷。

　　During the desorption stage, the saturated rotor rotates to the desorption zone and hot air at 180-220 ℃ is introduced to desorb VOCs from the zeolite. The concentration of exhaust gas after desorption can be increased by 5-25 times, significantly reducing the processing load on subsequent combustion or catalytic oxidation equipment.

　　3. 冷卻階段脫附后的轉輪進入冷卻區，用常溫空氣降溫，恢復吸附能力后重新進入吸附區，形成循環。

　　During the cooling stage, the detached rotor enters the cooling zone and is cooled with ambient temperature air to restore its adsorption capacity before re entering the adsorption zone, forming a cycle.

　　最終處理：濃縮后的高濃度VOCs可送入RTO（蓄熱式焚燒爐）或CO（催化燃燒）系統，徹底分解為CO和HO。

　　Final treatment: The concentrated high concentration VOCs can be sent to RTO (Regenerative Thermal Oxidizer) or CO (Catalytic Combustion) systems for complete decomposition into CO and HO.

　　二、沸石轉輪的技術優勢

　　2、 Technical advantages of zeolite wheel

　　1. 高效濃縮：可將廢氣風量減少5~20倍，降低后續設備投資和運行成本。

　　1. Efficient concentration: It can reduce the exhaust gas volume by 5-20 times, reducing subsequent equipment investment and operating costs.

　　2. 低能耗：相比直接燃燒，沸石轉輪+RTO組合能耗更低，尤其適合低濃度廢氣。

　　2. Low energy consumption: Compared to direct combustion, the zeolite wheel+RTO combination has lower energy consumption, especially suitable for low concentration exhaust gas.

　　3. 連續運行：轉輪旋轉式設計，實現吸附、脫附、冷卻同步進行，無需停機切換。

　　3. Continuous operation: The rotary design of the wheel enables synchronous adsorption, desorption, and cooling without the need for shutdown or switching.

　　4. 高穩定性：沸石耐高溫、耐腐蝕，使用壽命長，無活性炭更換產生的危廢問題。

　　4. High stability: Zeolite is resistant to high temperatures and corrosion, with a long service life and no hazardous waste issues caused by the replacement of activated carbon.

　　5. 適應性強：可處理苯系物、酮類、酯類等多種VOCs，廣泛應用于涂裝、印刷、化工等行業。

　　5. Strong adaptability: It can handle various VOCs such as benzene derivatives, ketones, esters, etc., and is widely used in industries such as painting, printing, and chemical engineering.

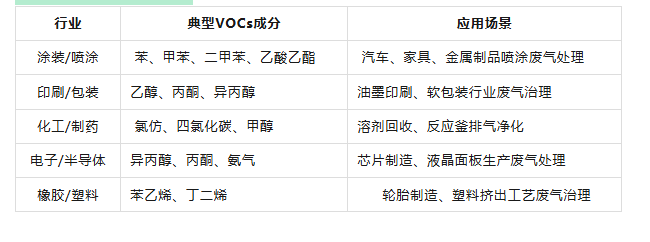

　　三、沸石轉輪的應用領域

　　3、 Application fields of zeolite wheel

　　四、沸石轉輪的常見問題及優化措施

　　4、 Common problems and optimization measures of zeolite wheel

　　1. 吸附效率下降原因：沸石老化、廢氣濕度高、顆粒物堵塞。 解決：優化預處理（除濕、過濾），定期檢查沸石活性。

　　1. Reasons for the decrease in adsorption efficiency: zeolite aging, high exhaust gas humidity, and particle blockage. Solution: Optimize pretreatment (dehumidification, filtration) and regularly check zeolite activity.

　　2. 脫附溫度不足原因：熱風溫度低或流量不足，導致VOCs脫附不完全。 解決：調整脫附溫度至200℃以上，優化熱風循環系統。

　　2. Reason for insufficient desorption temperature: Low hot air temperature or insufficient flow rate leads to incomplete desorption of VOCs. Solution: Adjust the desorption temperature to above 200 ℃ and optimize the hot air circulation system.

　　3. 轉輪機械故障原因：軸承磨損、傳動結構變形（尤其在大風量設備中）。 解決：加強設備維護，采用高精度傳動設計。

　　3. Causes of mechanical failure of the impeller: bearing wear, deformation of the transmission structure (especially in high air volume equipment). Solution: Strengthen equipment maintenance and adopt high-precision transmission design.

　　4. 高沸點VOCs處理困難原因：某些聚合物（如硅氧烷）易堵塞沸石孔隙。 解決：前段增加冷凝或化學洗滌，避免高沸點物質進入轉輪。

　　4. Difficulty in treating high boiling point VOCs: Some polymers (such as siloxanes) are prone to clogging the pores of zeolites. Solution: Add condensation or chemical washing in the front section to prevent high boiling point substances from entering the impeller.

　　五、未來發展趨勢

　　5、 Future Development Trends

　　1. 新型沸石材料：研發更高吸附容量、更耐高溫的沸石，提升處理能力。

　　1. New zeolite materials: Develop zeolites with higher adsorption capacity and higher temperature resistance to enhance processing capabilities.

　　2.組合工藝：與生物過濾、等離子體等技術結合，應對復雜廢氣成分。

　　2. Combination process: Combined with biological filtration, plasma and other technologies to deal with complex waste gas components.

　　結語

　　Conclusion

　　沸石轉輪憑借其高效、節能、穩定的特點，已成為VOCs治理的主流技術。隨著環保法規趨嚴，該技術將在更多行業推廣。企業在選型時需結合廢氣成分、風量、濃度等因素，選擇最適配的沸石轉輪系統，以實現經濟高效的廢氣治理。

　　Zeolite rotary wheels have become the mainstream technology for VOCs treatment due to their high efficiency, energy saving, and stability. With stricter environmental regulations, this technology will be promoted in more industries. Enterprises need to consider factors such as exhaust gas composition, air volume, and concentration when selecting the most suitable zeolite wheel system to achieve economical and efficient exhaust gas treatment.
